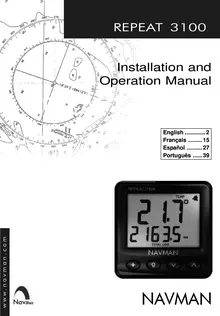

REPEAT 3100
Installation and Operation Manual
DRAFT
Approved by translator Approved by Plastimo This document is still under review and is subject to change. E a c h c o m p l e t e d s ta g e t o b e m a r k e d w i t h
English ............. 2 Français ......... 15 Español .......... 27 Português ...... 39
NAVMAN
2
FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an output on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced technician for help. A shielded cable must be used when connecting a peripheral to the serial ports.
NAVMAN
REPEAT 3100Installation and Operation Manual
Contents
1 Introduction ..................................................................................................... 4
2 Operation.........................................................................................................5 2-1 Turning on and off ....................................................................................................... 5 2-2 The keys and backlight................................................................................................5 2-3 Changing the data displayed ........................................................................................ 5 2-4 Changing units ............................................................................................................ 6 2-5 Simulate ...................................................................................................................... 6 2-6 Key reference..............................................................................................................6 3 Systems of several instruments .................................................................... 7 3-1 NavBus.......................................................................................................................7 3-2 NMEA ......................................................................................................................... 7
4 REPEAT 3100 hardware .................................................................................. 7 4-1 What comes with a REPEAT 3100 .............................................................................. 7 4-2 Other parts required .................................................................................................... 7 4-3 Accessories.................................................................................................................7 5 Installation and setup ...................................................................................... 8 5-1 Installation ................................................................................................................... 8 5-2 Setup.........................................................................................................................10 5-3 Resetting to factory defaults ...................................................................................... 10 Appendix A - Specifications ............................................................................. 11
Appendix B - NMEA function table ................................................................. 12 Appendix C - Troubleshooting ........................................................................ 14
Appendix D - How to contact us ..................................................................... 51
Important It is the owner's sole responsibility to install and use the instrument in a manner that will not cause accidents, personal injury or property damage. The user of this product is solely responsible for observing safe boating practices. NAVMAN NZ LIMITED DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW. This manual represents the REPEAT 3100 as at the time of printing. Navman NZ Limited reserves the right to make changes to specifications without notice. Governing Language: This statement, any instruction manuals, user guides and other information relating to the product (Documentation) may be translated to, or has been translated from, another language (Translation). In the event of any conflict between any Translation of the Documentation, the English language version of the Documentation will be the official version of the Documentation. Copyright © 2002 Navman NZ Limited, New Zealand, All rights reserved. NAVMAN is a registered trademark of Navman NZ Limited.
NAVMANREPEAT 3100Installation and Operation Manual
3
1 Introduction The REPEAT 3100 is part of the NAVMAN 3100 series of instruments, which measure speed, depth, wind, water temperature, battery voltage and other functions. The REPEAT 3100 can display any data that is output from 3100 series instruments, as well as NMEA data from compatible instruments. The REPEAT 3100 can also act as a GPS repeater and provides a wealth of information on deck from a GPS situated in a more protected position, such as below decks. The REPEAT 3100 can obtain its data in two ways: From other 3100 Series instruments which are connected by NavBus (NavBus is NAVMAN’s
The REPEAT 3100 display unit
Display (backlit)
Four keys (backlit)
Display modes (see section 2-3)
Dual mode: two items of data from SPEED 3100, DEPTH 3100 or MULTI 3100
4
proprietary system for connecting marine instruments). From a maximum of three instruments, such as NAVMAN’s TRACKER Chartplotter, that send compatible NMEA 0183 V2 data. When connecting the REPEAT 3100 to 3rdparty  instruments, ensure that the NMEA data being sent is compatible. For maximum benefit, please read this manual carefully before installation and use. Cleaning and maintenance Clean the unit with a damp cloth or mild detergent. Avoid abrasive cleaners, petrol or other solvents.
Wind mode: one item of data from WIND 3100
NAVMAN
Alarm symbol
Display shows Speed over Ground (SOG)
111 x 111 mm (4.4" x 4.4")
NMEA mode: one item of data from compatible NMEA instruments
REPEAT 3100Installation and Operation Manual
2 Operation 2-1 Turning on and off Turn the unit on and off with the auxiliary power switch on the boat. The unit does not have its own power switch. When you turn the unit off, it retains any settings. If the word SIM flashes at the bottom, right of the display, then simulate is on (see section 2-5). 2-2 The keys and backlight The unit has four keys, labelled+ In ., , and this manual: Pressmeans to push the key for less than one second. Holdfor two seconds means to hold the key down for two seconds or more. Press one key + another keymeans to push both keys together. Set backlight for screen and keys You can set the backlight to one of four brightness levels or off. Press once to display the current  backlight level, press again to change the level:
Backlight level 2
2-3 Changing the data displayed The display has three modes: Dual modedisplays speed or depth data. Wind modedisplays wind data. NMEA modedisplays data from compatible NMEA instruments. To change mode, press+one or more times. Note: If the display is dashes(— —)then it means that the data is not available or the instrument which sends the data to the REPEAT 3100 is turned off or disconnected. Dual mode
NAVMAN
REPEAT 3100Installation and Operation Manual
Dual Mode displays two items of data at a time from a SPEED 3100, DEPTH 3100 or MULTI 3100. To change the item displayed in the top line of the display, press one or more times. The choices are: Speed. Avg speed. Max speed. Trim speed. Depth. Temperature. To change the item displayed in the bottom line of the display, press one or more times. The choices are: Speed. Depth. Trip log (distance). Total log (distance). Battery voltage. Countdown timer.
Wind mode Wind mode displays one item of data at a time from a WIND 3100. To change the item displayed, press or one or more times. The choices are: Apparent wind direction. True wind direction. Apparent wind speed. True wind speed. Max wind speed. VMG.
5
NMEA mode NMEA Mode displays one item of data at a time from any compatible NMEA instrument. To select which NMEA data can be displayed, see section 5-2 , step 2. To change the item displayed, press or one or more times. 2-4 Changing units To change the units on the REPEAT 3100, change the units on the instrument which sends the data to the REPEAT 3100.
2-6 Key reference
Turn power on
6
Hold+Turn Simulate on or off ld + Reset to factory 5 sec defaults
Normal operation ++
+
Change display mode, between Dual mode, Wind mode and NMEA mode
Change item of data displayed
Change item of data displayed
Adjust backlight (4 levels or off)
2-5 Simulate Simulate allows you to become familiar with the REPEAT 3100 off the water. When simulate is on, the unit functions normally except that the data from other instruments is ignored and the unit generates this data internally. The word SIM flashes at the bottom, right corner of the screen if: The REPEAT 3100 has simulate on. Any instrument connected to the REPEAT 3100 by the NavBus has simulate on. To turn simulate on or off in the REPEAT 3100: 1 Turn the power off. 2 Hold down+while you turn the power on.
Setup
Set Backlight Group ++
Select NMEA data to display ++
Set UTC offset (for time display) ++
+
Increase value or change NMEA item
Decrease value or change NMEA item
Turn NMEA function display ONorOFF
Return to normal operation
NAVMANREPEAT 3100Installation and Operation Manual
3 Systems of several instruments Several NAVMAN instruments can be connected group. If you change the backlight in an together to share data. There are two ways of instrument in group 0 then no other connecting instruments together, NavBus or NMEA. instruments are affected. 3-1 NavBus onIf an alarm sounds, mute it by pressing any NAVMAN instrument w can display NavBus is a NAVMAN proprietary system that allows that alarm and which has a key. Alarms can ssiynsgtlee msse to f ofm turltaipnlse diuncsterrus.m eWnthse tno  ibnset rbuuimlte untsisn ga raenot be muted from a REPEAT 3100. connected by NavBus:NavBus and the REPEAT 3100 If you change the units, alarms or calibration in The REPEAT 3100 will automatically read and one instrument, then the values will display data from other instruments connected automatically change in all other instruments by NavBus. of the same type.3-2 NMEA Each instrument can be assigned to a group of NMEA is an industry standard, but is not as flexible icnhsatrnugme etnhtes  b(saecek lisgehctt iion na n5 -i2n,s tsrtuemp e2n).t  Iifn  ygoruoupas NavBus as it requires dedicated connections between compatible instruments. The REPEAT 3100 1, 2, 3 or 4 then the backlight will automatically can read and display NMEA data output by up to three change in the other instruments in the same instruments (see Appendix B).
4 REPEAT 3100 hardware 4-1 What comes with a REPEAT 3100 REPEAT 3100 unit with protective cover. Warranty card. Mounting template. This Installation and Operation manual. 4-2 Other parts required One or more 3100 series instruments will be connected to the boat 12 V power supply via: An accessory switch to turn the instruments on and off. A fuse: Use a 1 A fuse for between one and five instruments. The REPEAT 3100 can receive and display: Data from other NAVMAN instruments connected via NavBus; settings for units and backlighting are shared (see section 3-1). NMEA data from up to three compatible instruments (see section 3-2). Wiring and connectors are required (see section 5 or the NavBus Installation and Operation manual). 4-3 Accessories NavBus junction boxes are available from your NAVMAN dealer. NAVMANREPEAT 3100Installation and Operation Manual
7
5 Installation and setup Correct installation is critical to the performance of the unit. It is vital to read this section of the manual and the documentation that comes with the other parts before starting installation. Warnings The unit is waterproof from the front. Protect the rear of the unit from water, or else water might enter the
5-1 Installation REPEAT 3100 display unit 1 Choose a location for the display unit that is: Easily seen and protected from damage. At least 100 mm (4") from a compass and at least 500 mm (1.65 ft) from a radio or radar antenna. Away from engines, fluorescent lights, and power inverters. Accessible from behind; the minimum clearance required at the back is 50 mm (2") (see right). With the back of the unit protected from moisture. 2 The unit must mount on a flat panel which is less than 20 mm (0.75") thick. Stick the mounting template in place. Drill a 50 mm (2") fixing hole through the centre hole in the template. Notethat the template allows space around the unit for the protective cover. 3 Remove the fixing nut from the back of the unit. Insert the stud at the back of the unit through the mounting hole. Hand tighten the fixing nut. Power/data cable wiring Follow the wiring example on the next page: 1 The REPEAT 3100 requires 12 V DC power. Fit a power switch and fuse to the power supply or power the unit from a fused auxiliary switch. The fuse should be 1 A for up to five NAVMAN 3100 series instruments. 2 If the REPEAT 3100 is to receive data from other instruments via the NavBus, install these instruments and connect the REPEAT 3100 to the NavBus. NoteIf an instrument can be connected to the: REPEAT 3100 by both NavBus and by NMEA, then use the NavBus, because more information can be shared via the NavBus (see section 3-1).
8
breathing hole and damage the unit. The warranty does not cover damage caused by moisture or water entering the back of the unit. Ensure that any holes that you cut will not weaken the boat’s structure. If in doubt, consult a qualified boat builder.
Side view of display unit mounting
20 mm (0.75") maximum thickness
Fixing hole 50 mm (2")
Display unit
Clearance 50 mm (2") minimum
Fixing nut
3 If the REPEAT 3100 is to receive NMEA data from other compatible instruments, install these instruments and connect each instrument’s NMEA output to one of the three REPEAT 3100 NMEA inputs. Up to three instruments can be connected. 4 Tape or cover any unused wires or connectors to protect them from water and keep them from shorting together. Setup and test Set up the unit as described in section 5-3. Take the boat for a trial run to check that all the instruments work correctly.
NAVMANREPEAT 3100Installation and Operation Manual
Group 1
Tip: Daisychain the power wires between instruments or groups of instruments.
REPEAT 3100Installation and Operation Manual
NAVMAN
Power & data Junction box connections
Other wiring
Use optional junction boxes to simplify wiring, (see right). For information on how to connect NavBus and to use junction boxes, refer to the NavBus Installation and Operation manual.
Other wiring
9
NAVMAN NavBus Instruments NMEA Instruments WIND 3100 SPEED 3100 GPS Compass
Switch Fuse Red+12 V DC power -Black Green White NavBus Yellow connections Orange Blue
Red 12 V DC Black power (see left)
REPEAT 3100 wiring example In this example, the REPEAT 3100 receives data from a NAVMAN WIND 3100 and a SPEED 3100 via the NavBus. Any number of NAVMAN instruments can be connected to the NavBus and send data to the REPEAT 3100. The REPEAT 3100 also receives NMEA data from a GPS and a compass. One more NMEA instrument could be connected to the third NMEA input on the REPEAT 3100. Wire any more REPEAT 3100s in parallel with the first.
Orange Blue
REPEAT 3100
Three OtherOtherNMEAiNMEtsA wiring wiring npu NMEA output Green outputWhite It does not matter which NMEA Yellow output is connected to which Unused REPEAT 3100 NMEA input NMEA Orangeinput Blue NavBus wires
Orange Blue
To next cluster
Power/data cable
Wire multiple REPEAT 3100 in parallel
Power/data cables NavBus cable Group 2 Junction box Power & data connections
5-2 Setup 1 If the unit is part of a system of 3100 series instruments connected by NavBus, set the backlight group number (see section 3-1): i Press++ to display the Backlight Group screen:
Backlight group 2
ii Press or to set the backlight group number. 2 If the unit is to display data sent by NMEA, select what NMEA data items will be displayed (see section 2-3, NMEA mode): i Ensure that all the instruments which send NMEA data to the REPEAT 3100 are turned on and are transmitting the NMEA data. ii Press+ the NMEA Selection+ until screen is displayed:
10
NMEA function number
Function can be ONorOFF
NMEA input number, identifies which wire the NMEA data is received on (see Appendix A, Power/data cable wires)
iii If a NMEA instrument has recently been connected to or disco cted from the REPEAT 3100, press + to clear the detected NMEA strings. iv The REPEAT 3100 automatically detects NMEA data sentences from the NMEA instruments which are sending data and displays them here. Press or to show each NMEA function in turn, note that the data value itself is not displayed. For each function, use the NMEA function number to look up the data description in
3
the NMEA function table (see appendix B). Then press+if necessary to turn the functionON(data will be displayed) orOFF (data will not be displayed). If the unit is to display local time, set the UTC offset. The UTC offset will be added to the UTC (GMT) time sent from a GPS instrument to display the local time. To set the UTC offset: i Press++ until the UTC Offset screen is displayed:
Offset is + 2.5 hours
ii Press or to set the UTC offset.  The range is +13 to -13 hours in 0.5 hour increments. Note: Daylight saving time must be adjusted manually. 4 Press to return to normal operation. 5-3 Resetting to factory defaults All settings may be reset to the manufacturer’s default settings (see below). To reset to factory defaults: 1 Turn the power off. 2 Hold down + while you turn the power on and continue to hold the keys down for at least 5 seconds.
SIMULATE mode .................................... OFF Backlight level ............................................ 0 Backlight group .......................................... 1 NMEA data to display ................ All are OFF UTC offset ........................................ 0 hours
NAVMANREPEAT 3100Installation and Operation Manual
Appendix A - Specifications Physical Case size 111 mm (4.4") square. LCD display 82 mm (3.2") wide, 61 mm (2.4") high; twisted nematic. LCD digits 30 mm (1.2") high on top line, 20 mm (0.8") high on bottom line. Four operator keys, laser etched. Backlighting for display and keys, amber, four levels and off. Operating temperature 0 to 50°C (32 to 122°F). Power cable length 1 m (3.25 ft). Electrical Power supply 10.5 to 16.5 V DC, 20 mA without backlighting, 60 mA with full backlighting. NavBus interface and display NavBus interface for NAVMAN SPEED 3100, DEPTH 3100, MULTI 3100 and/or WIND 3100 instruments. Can receive and display these values from the NavBus: Current speed, average speed, maximum speed, trim speed. Log: trip log and total log. Temperature. Countdown timer (from SPEED 3100 or MULTI 3100). Depth. Wind speed and direction (true and apparent). VMG.
NAVMAN
REPEAT 3100Installation and Operation Manual
NMEA interface and display Three NMEA 0183 inputs for compatible NMEA instruments. Can receive and display these NMEA sentences: APB, BEC, BOD, BWC, BWR, BWR, DBT, DPT, GGA, GNS, HDG, HDT, HSC, MTW, MWD, MWV, RMA, RMB, RMC, VDR, VHW, VLW, VPW, VTG, WCV, XTE, XTR, ZDA (see Appendix B). Standards compliance EMC compliance: USA(FCC): Part 15 Class B. Europe(CE): EN50081-1, EN50082-1. New Zealand and Australia(C Tick): AS-NZS 3548. Environment: IP66 from front when correctly mounted. Power/data cable wires Wire Signal Red Power positive, 12 V DC Black Power negative, NMEA common Orange NavBus + Blue NavBus -White NMEA input 1 Yellow NMEA input 2 Green NMEA input 3
11
