Notice utilisateur, mode d'emploi du modèle 'CookSurface' de marque 'Fisher & Paykel'

Informations

Publié par	orro
Nombre de lectures	81
Langue	Français
Poids de l'ouvrage	1 Mo

Extrait

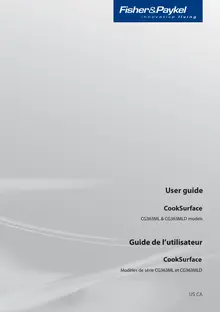

User guideCookSurfaceCG363ML & CG363MLD modelsGuide de l’utilisateurCookSurfaceModèles de série CG363ML et CG363MLDUS CA

WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance. WHAT TO DO IF YOU SMELL GAS Do not try to light any appliance. Do not touch any electrical switch. Do not use any phone in your building. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department.Installation and service must be performed by a qualified installer, service agency or the gas supplier.

ContentsIntroduction Safety and warnings Using your CookSurface Cooking guidelines Care and cleaning Sound preference settings Troubleshooting Alert codes Warranty and service Important! SAVE THESE INSTRUCTIONSThe models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.3481114182022251US CA

USCA

Introduction3US CAIntroducing your CookSurfaceCongratulations on your new purchase. The Fisher & Paykel CookSurface is the ultimate in gas cooking, giving you the speed of gas, the precision and simplicity of electronic control, and the easy-care elegance of a ceramic glass surface. Your CookSurface has a number of features, including a constant flame safety system, automatic cool-down responses, hot warning indicators, and audio and visual feedback through the electronic interface and built-in speakers. Before using your CookSurfaceMake sure the installer has completed the installation checklist in the installation instructions.Read this guide, taking special note of the ‘Safety and warnings’ section.A heat-resistant removable sticker on the glass has been provided as a quick reference guide. When you no longer need it, it can be easily peeled off. 645113219810761 On/Off power button2 On/Off light3 Keylock light Pan supports: 4 Burner head 5 Pan support pins6 Trim rings7 Control dial1213Fig.1 CG363ML only illustrated8 Control display 9 Burner-ready light10 Hot warning light11 Medium Aero™ burner12 Small Aero™ burner13 Wok Aero™ burner

US CA4Safety and warningsYour safety is important to us. Please read this information before using your CookSurface. WARNING! Explosion HazardDo not use water on grease fires. A violent steam explosion may result. Smother fire or flame or use dry chemical or foam type extinguisher.Do not use the appliance to heat unopened food containers, such as cans. This will cause the container to burst and could result in injury.Do not store flammable materials such as gasoline near the appliance.Do not spray aerosols in the vicinity of this appliance while it is in operation.Failure to follow this advice may result in death or injury.WARNING! Poisoning HazardClean the appliance with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.Never use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance.Failure to follow this advice may result in poisoning or death.WARNING! Electrical Shock HazardIf the surface is cracked, switch the power to the appliance off at the wall to avoid the possibility of electric shock. Call your Authorized Service Center or Customer Care.Failure to follow this advice may result in electrical shock.

Safety and warningsWARNING! Electrical Shock HazardBefore doing any user maintenance, locate the wall power outlet and disconnect the appliance from the power supply and turn off the gas supply at the shut-off valve.This appliance is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded power outlet. Do not under any circumstances cut or remove the grounding prong from this plug.Failure to follow this advice may result in electrical shock.WARNING! Hot Surface HazardDo not touch burners or areas near burners. Burners may be hot even though they are dark in color. Burners and areas near burners may become hot enough to cause burns. To avoid risk of burns and/or fire, keep loose clothing, potholders or any other flammable materials well clear of the burner flame. Do not touch or let clothing, potholders or other flammable materials contact burners or areas near burners until they have had sufficient time to cool. Among these areas is the area within the circles around the burners, including the pan support pins.Always use a dry potholder when removing cookware from the appliance. Do not use wet or damp potholders as these can cause steam burns. Do not use towels or similar cloths for removing cookware.Do not leave children alone or unattended near the appliance. Never allow children to stand, sit or play near, on or with the appliance.Be careful when reaching for items stored in cabinets over the appliance. Flammable materials could be ignited if brought in contact with flame or hot surfaces and may cause severe burns.Failure to follow this advice could result in burns and scalds.5US CA

US CA 6Safety and warningsImportant safety instructions!Have your appliance installed and properly grounded by a qualified installer in accordance with the installation instructions.Ensure that a manual gas shut-off valve is installed in a location accessible after installation.Be sure to have the installer show you how to turn off the gas and electrical supply.Use this appliance only for its intended purpose as described in this user guide.This appliance cannot be used in the event of a power failure. Do not attempt to operate the appliance during power failure.Wear proper apparel. Loose fitting or hanging garments should never be worn while using the appliance.Turn the pot handles to the side or the back of the appliance away from the reach of children. Handles should not be positioned over adjacent burners.Always check that you have turned the burners off when you have finished cooking.Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.Before using the appliance, ensure that all burners have been assembled correctly.Do not operate a burner without all burner parts in place.Always keep flammable wall coverings, curtains or drapes a safe distance from your appliance.For safety reasons, the burner flame size should be adjusted so it does not extend beyond the edge of the cookware.Use cookware of the appropriate size and construction for the type of cooking. This appliance is equipped with burners of different sizes. Cookware must be matched to the size of the burner. Select utensils with flat bottoms large enough to cover the burner flames. The use of undersize utensils will expose a portion of the burner flames to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.We recommend raising the pan supports first then placing the pan on them (the pan supports are not primarily designed for lifting pans).Do not stand on this gas appliance.For safety reasons, do not store items of interest to children above or at the back of the appliance - children climbing on the appliance to reach items could be seriously injured.When deep-frying in fat, be sure the pan is large enough not to cause an overflow from bubbling of the fat. Do not deep-fry foods with a high moisture content or food covered with frost.Do not let cooking grease or other flammable materials accumulate near the appliance.Do not repair or replace any part of the appliance unless specifically recommended in this user guide. All other servicing should be referred to a qualified technician.Glazed cooking utensils - only certain types of glass, glass/ceramic earthenware, or other glazed utensils are suitable for cooktop service without breaking due to sudden change in temperature.

Safety and warningsImportant safety instructions!Do not obstruct the flow of combustion and ventilation air to the appliance.The Governor of California is required to publish a list of substances known to the State of California to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances.WARNING!: Gas appliances contain or produce substances which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects or other reproductive harm. To reduce the risk from substances in fuel or from fuel combustion, make sure this appliance is installed, operated, and maintained according to the manufacturer’s instructions.7US CA

UCSA 8Using you roCkoOperating the CookSurface1 Press the on/off power button. Surface 2 Press the control dial. A tone will sound. 4 While the burner-ready light is glowing, turn the dial clockwise to light the gas. Note: if the burner-ready light goes out before you light the gas, press the dial again.3 The dial and the pan supports will rise. The burner-ready light will then glow for four seconds.5 Place your pan on the pan supports.

Operating the CookSurface 6 Turn the dial to accurately adjust the flame. Note: the flame will not go out if you keep turning the dial down. Using your CookSurafec 7 To stop cooking, press the dial. The gas will be shut off, and the pan supports will stay raised. If they’re hot, the hot warning light will glow.8a To relight the burner when the pan supports are raised: Press the dial. The burner-ready light will glow for four seconds. While the burner-ready light is glowing, turn the dial clockwise to light the gas.9UCS A
