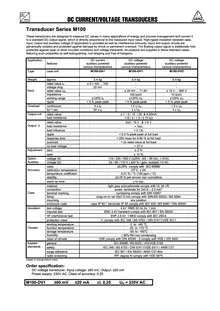

DC CURRENT/VOLTAGE TRANSDUCERS Transducer Series M100 These transducers are designed to measure DC values in many applications of energy and process management and convert it to a standard DC output signal, which is directly proportional to the measured input value. High-rgade insulation between case, input, output and auxiliary voltage (if applicable) is provided as well as interference immunity. Input and output circuits are galvanically isolated and protected against damage by shock or permanent overload. The floating output signal is additionally fully protected against open or short circuited conditions and voltage transients. All products are supplied in flame retardant cases featuring such properties as self-extinguishing, non-dripping and free of halogens. Application DC current DC voltage DC voltage features auxiliary powered auxiliary powered auxiliary powered various characteristics various characteristics various characteristics Type case unitM100-DA1 M100-DV1 M100-DV2 Weight approx. 0.4 kg 0.4 kg 0.4 kg rated value I ± 0,1 mA ... 10A - - N voltage drop 20 mV - - Input rated value U - ± 20 mV ... 11,9V ± 12 V ... 600 V N impedance - 100 k Ω/V 10 k Ω/V working range ±125% I ±125%U±125% U N N Nripple < 5 % peak-peak < 5 % peak-peak < 5 % peak-peak Overload continuous 4 x I 1.5 x U 1.5 x U N N Nfor 1 sec 50 x I4 x U 4 x U N N NOutput ...
