These transducers are designed to measure phase angle in single phase or 3 phase networks

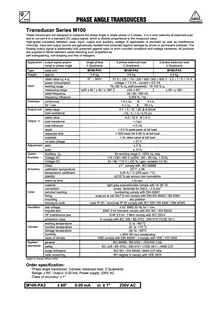

PHASE ANGLE TRANSDUCERS Transducer Series M100 These transducers are designed to measure the phase angle in single phase or 3 phase, 3 or 4 wire networks at balanced load and to convert it to a standard DC output signal, which is directly proportional to the measured value. High-grade insulation between case, input, output and auxiliary voltage (if applicable) is provided as well as interference immunity. Input and output circuits are galvanically isolated and protected against damage by shock or permanent overload. The floating output signal is additionally fully protected against open or short circuited conditions and voltage transients. All products are supplied in flame retardant cases featuring such properties as self extinguishing, non-dripping and free of halogens. Application output signal propor- single phase 3-phase balanced load 3-phase balanced load tional to phase angle 4 Quadrants 2 Quadrants 4 Quadrants Type case unit M100-PA1 M100-PA2 M100-PA3 Weight approx. 0.6 kg 0.6 kg 0.6 kg rated value U ● I 57 ... 500V N N 57.8 ≤ 100 / 110 / 230 / 400 / 500 ≤ 600 V · 0,5 ≤ 1 / 5 ≤ 10 A power consumption voltage < 1.5 VA · current < 0,5 VA Input working range 75-125 % U (self powered) · 15-125 % I N N measuring range ±45/ ± 60 / ± 90 / ± 180° ±45/ ± 60° ± 90 / ± 180° rated frequency 50 / 60 / 400 Hz frequency influence 0,005 % / Hz Overload continuous 1.5 ...
