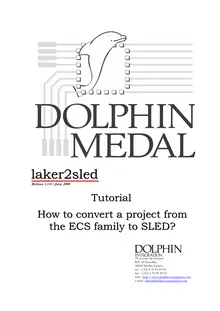

laker2sled Release 1.1.0 – June 2008 Tutorial How to convert a project from the ECS family to SLED? 39, avenue du Granier B.P. 65 Inovallée 38242 Meylan France tel : +(33) 4 76 41 10 96 fax : +(33) 4 76 90 29 65 web : http://www.dolphin-integration.com e-mail : medal@dolphin-integration.com ƒƒƒIntroduction The aim of this tutorial is to make you familiar with the laker2sled converter. You will learn how to use it, and you will understand its parameters. 1 Introduction The laker2sled converter is a command line interface program that provides the possibility to convert an ECS project to a SLED design or library. The role of this converter is to provide an easy way of reusing ECS projects in SLED without much porting effort. This tool is provided with the SLED application and its working is the same for all platforms (Window, Solaris, and Linux). This program is located in: {SledInstallPath}/bin Example on a Windows platform: C:\Program Files\Dolphin\Sled110\bin 1.1 Requirements This tutorial requires that some software be installed on your computer: ECS family software The laker2sled converter uses some functionality of the ECS family software. To use laker2sled, the ECS family software must be installed and laker2sled must be able to access to the ECS family software install path. Laker2sled converter SLED to edit the converted ECS project 1.2 Supported schematic editors Generally all schematic editors of ...
