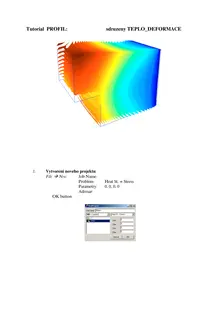

ÆTutorial PROFIL: sdruzeny TEPLO_DEFORMACE 1. Vytvoreni noveho projektu:File New: Job Name:Problem: Heat St. + StressParametry: 0, 0, 0, 0Adresar:OK buttonÆÆÆÆÆÆÆÆÆÆÆÆÆÆÆÆÆ2. Nastaveni tolerance pro KPs s ohledem na jejich zakazanou dualitu:Operatins Options:Geom_tolerance: 1E-5OK buttonClose button3. Vyrvoreni zakladnich bodu geometrie:Geometry KPs KPs by dimension: [0.01 ; 0 ; 0]; KP_Att, KP_inGroup=0KPadd buttonGeometry KPs : [0.04 ; 0 ; 0]Geometry KPs KPs by dimension: [0.04 ; 0.02 ; 0]; KP_Att, KP_inGroup=0KPadd buttonGeometry KPs : [0 ; 0.02 ; 0]; KP_Att, KP_inGroup=0Geometry KPs KPs by dimension: [0 ; 0.01 ; 0]; KP_Att, KP_inGroup=0KPadd buttonGeometry KPs : [0,01 ; 0.01 ; 0]; KP_Att, KP_inGroup=04. Vytvoreni linie:Geometry Lines Straight line through 2 KPs:Form KP: 0To KP: 1OK buttonGeometry Lines Straight line through 2 KPs:Form KP: 1To KP: 2OK buttonÆÆÆÆÆÆÆÆÆÆÆÆGeometry Lines Straight line through 2 KPs:Form KP: 2To KP: 3OK buttonGeometry Lines :Form KP: 3To KP: 4OK buttonGeometry Lines Straight line through 2 KPs:Form KP: 4To KP: 5OK buttonGeometry Lines Straight line through 2 KPs:Form KP: 5To KP: 0OK button5. Zadne linie vybrany:V object manageru na linie. Prave tlacitko mysi stisknout, Line_operations Unselect all6. Vytvoreni oblasti ze vsech nezatrzenych linii. Nutnou podminkou vytvorenitakoveto oblasti je jeji uzavrenost. Line_operations ...
